RHINO XLT hydraulic

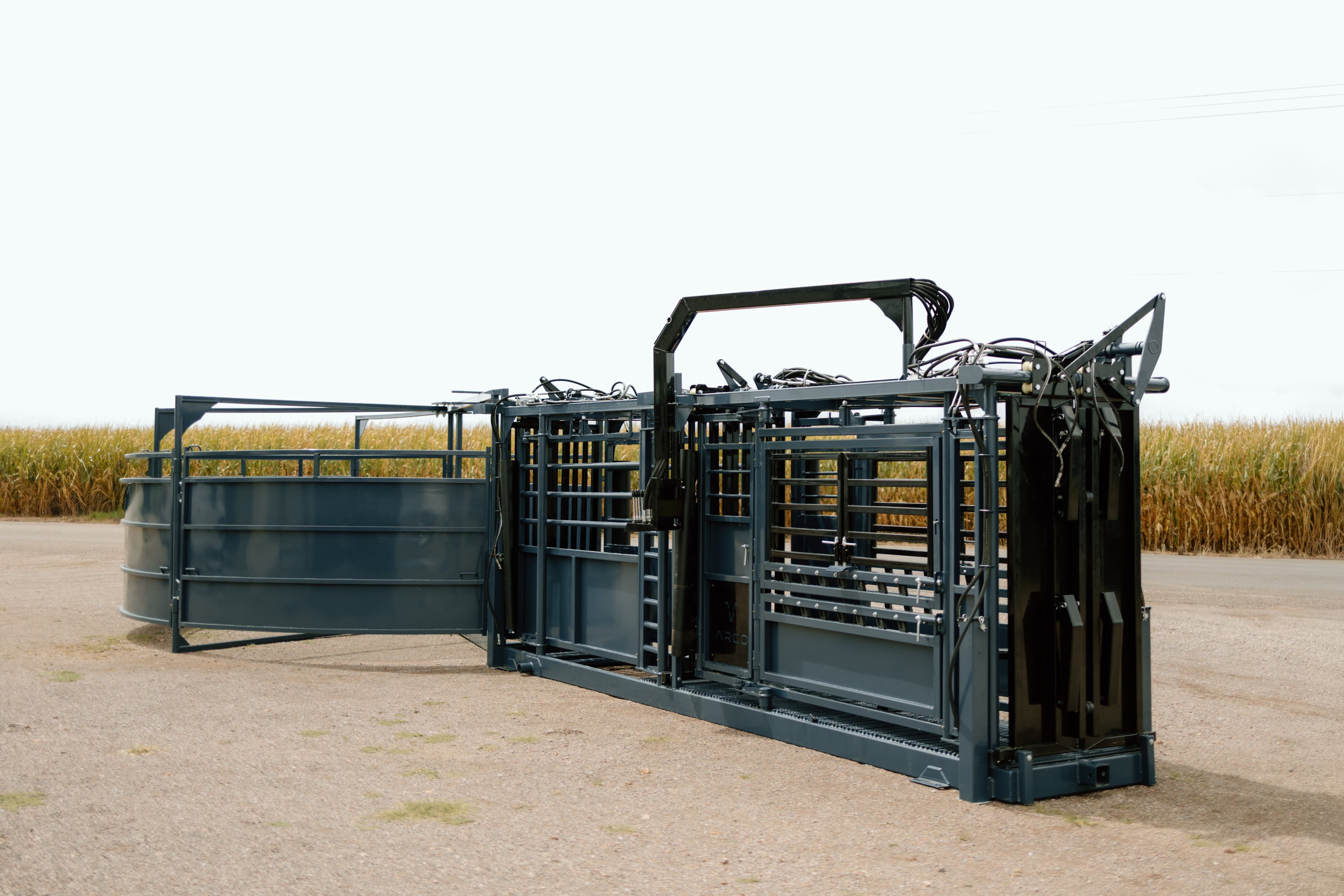

The Rhino XLT Hydraulic Chute is a complete cattle handling system designed for ranchers who demand efficiency, durability, and low-stress livestock handling. Built on the proven Rhino Hydraulic Chute platform, the XLT package includes an 8 ft adjustable alleyway, a 10 ft radial foldable sweep tub, and scale-ready mounting brackets, creating a complete working system that helps move cattle smoothly and safely through the chute.

The hydraulic chute features a parallel squeeze system, hydraulic headgate, hydraulic tailgate, and hydraulic neck extender, all operated through a four-lever valve control for precise and effortless operation. Multiple access doors provide excellent access for veterinary procedures, vaccinations, and inspections while maintaining animal control and operator safety.

The integrated 8 ft adjustable alleyway is designed to improve cattle flow and includes scale-ready mounting brackets, allowing easy installation of livestock scales. The 10 ft radial foldable sweep tub helps guide cattle efficiently into the alleyway while folding for easier transportation and storage.

For maximum mobility, the Rhino XLT is equipped with four hydraulic lifting jacks that allow quick attachment of an optional wheel kit, making it easy to move the system between locations.

Constructed from heavy-duty steel and finished with a sandblasted, electrostatic paint coating, the Rhino XLT is built to withstand demanding ranch conditions while providing years of dependable service.

Chute Specifications

• Length: 11 ft

• Width: 4 ft

• Height: 9 ft

Overall System Specifications

• Length: 30 ft

• Width: 4 ft

• Height: 9 ft

• Weight: 7,620 lb

Key Features

• Hydraulic headgate, tailgate, squeeze, and neck extender

• 8 ft adjustable alleyway with scale-ready mounting brackets

• 10 ft radial foldable sweep tub

• Four hydraulic lifting jacks for optional wheel kit installation

• Heavy-duty steel construction

• Multiple veterinary access points

• Low-stress cattle handling design

• Sandblasted and electrostatically painted finish
